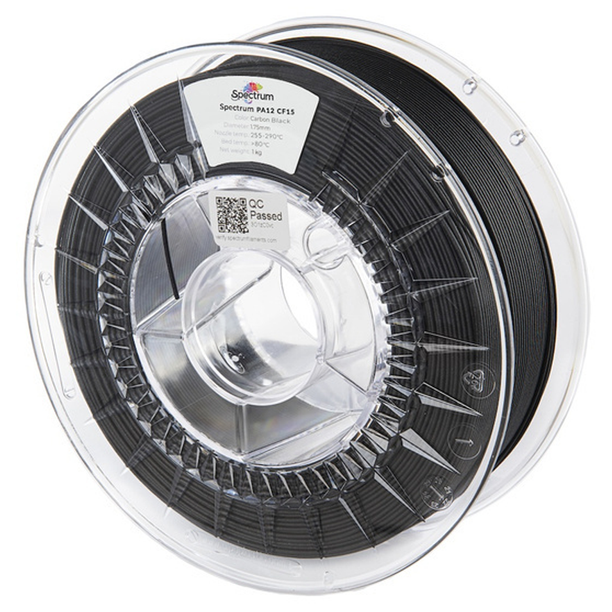

Spectrum PA12 CF
Lightweight and durable, this nylon filament is reinforced with 15% carbon fibers for exceptional strength, rigidity, and dimensional stability.
Prices displayed are tax exclusive. Tax will be calculated during checkout.
Description
Lightweight, Durable Nylon Filament with Carbon Fiber
Spectrum PA12 CF15 is an advanced technical filament reinforced with 15% carbon fibers, offering exceptional strength, rigidity, and dimensional stability. It provides outstanding thermal resistance, withstanding temperatures up to 170°C, making it ideal for applications in extreme conditions. The filament is also resistant to chemicals and moisture, making it suitable for demanding industrial environments.
The 15% carbon fiber reinforcement ensures better layer adhesion, resulting in greater print durability. With its stress-relief technology, Spectrum PA12 CF15 offers excellent Z-axis strength and dimensional stability, allowing for complex prints without warping.
With its reduced weight (10% lighter compared to PA6 CF15) and strong interlayer adhesion, PA12 CF15 is an ideal material for professional projects where precision, durability and resistance to external factors are essential. It is a reliable solution for engineering and industrial use.
Tip: Due to the essential content of chopped carbon fiber, it is recommended to use nozzles with diameters exceeding the standard value of 0.4mm. The presence of carbon fiber may also cause wear of standard nozzles; thus, it is recommended to use hardened steel or ruby nozzles for prolonged application of Spectrum PA12 CF15.
Key Features:
15% carbon fiber reinforcement
10% lighter than PA6 CF15
High thermal resistance up to 170°C
Reduced moisture absorption compared to standard PA12 nylon
Dimensional stability and no shrinkage
Technical Specification
Compatibility
| Supported BigRep Printers | IPSO 105, ALTRA 280 |
| Recommended SWITCHPLATES | SWITCHPLATE Prime |
Filament Properties
| Material | PA12 CF15 |
| Specific Gravity (ISO 1183) | 1.07 g/cm³ |
| MFR 210°C/2.16 kg (ISO 1183) | 3 g/10 min |
Mechanical Properties
| Tensile Stress at Break (ISO 527-1/2) | 125 MPa |
| Tensile Strain at Break (ISO 527-1/2) | 5 % |
| Tensile Modulus (ISO 527-1/2) | 8000 MPa |
| Charpy Impact Strength (ISO 179/1eU) | 75 kJ/m² |
| Charpy Notched Impact Strength (ISO 179/1eU) | 15 kJ/m² |
Thermal Properties
| Deflection Temperature @0.45 MPa (ISO 75-1/2) | 170 °C |
| Deflection Temperature @1.8 MPa (ISO 75-1/2) | 150 °C |
| Flammability 1.6 mm (UL94) | HB |
Recommended Printing Conditions
| Nozzle Temperature | 255–290 °C |
| Print Bed Temperature | >80 °C |
| Cooling Fan | 0–10 % |
| Layer Height | ≥0.2 mm |
| Shell Thickness | 0.5–3.0 mm |
| Closed Chamber | Recommended for larger prints |
| Dry Box | Yes |
| Hardened/Ruby Nozzle | Yes |
| Drying (if wet) | Recommended (≥6h at 80 °C) |
| Adhesive | Not necessary (Magigoo PA optional) |
Other Information
| Shelf Life | 24 months |
| Storage Temperature | 18–25 °C |
Packaging
| Package Weight (Approx.) | 3 kg |
The technical data provided herein are for general information and comparison purposes only. Mechanical strength and other properties of parts printed with these materials can vary greatly depending on print settings, user experience, and environmental conditions. We do not guarantee the suitability, safety, or performance of printed parts for any specific purpose. It is the responsibility of the user to test and determine whether the printed parts meet the requirements for their intended use. We do not accept any liability for damage, injury, or loss resulting from the use of this material or from parts made with this material. Please review all available safety information and perform your own testing before using this product in any application.
