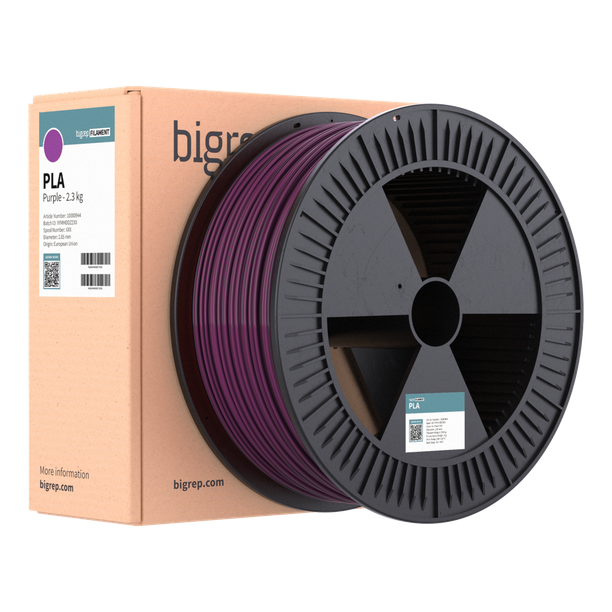

BigRep PLA
Description
BigRep’s PLA is a well-rounded filament ideal for large-format rapid prototyping for consistent results at an affordable price. Optimized for the specific challenges of large-format 3D printing, BigRep PLA surpasses lower-cost competitors that offer PLA filament formulated for desktop printers.
With low moisture absorption and minimal shrinkage, parts printed with BigRep PLA demonstrate minimal warping and reliable results. It is easy to print and perfect for design iterations in the prototyping phase of nearly any application.
BigRep PLA is a biopolymer with reduced environmental impact, especially compared to filaments derived from fossil fuels. Natural-colored PLA is FDA compliant for food safety and meets all requirements of EU Directives on food contact.
Highlights
Most Affordable for Cost Savings
Low Moisture Absorption

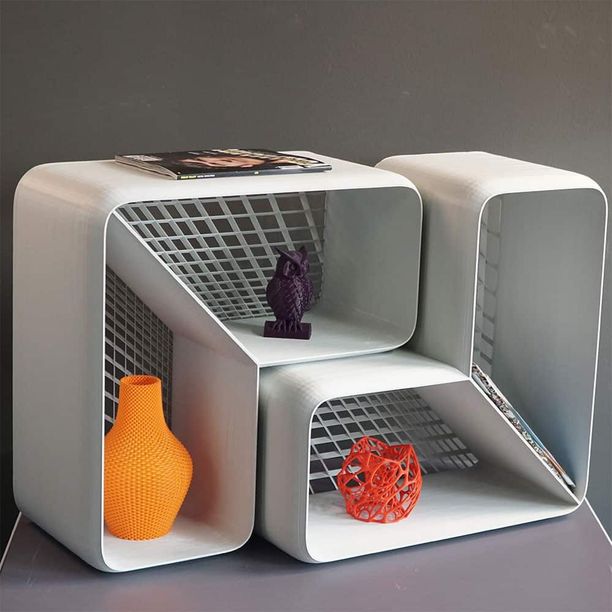

Easy to Print for Wide Range of Uses
Minimal Shrinkage for Part Accuracy
Reduced Environmental Impact
Technical Specification
Compatibility
| Supported BigRep Printers | VIIO 250, STUDIO.2, ONE, PRO |
| Recommended SWITCHPLATES | SWITCHPLATE Select, SWITCHPLATE Classic, SWITCHPLATE Prime |
Filament Properties
| Material | Polylactic Acid |
| Diameter | 2.85 mm |
| Density (ISO 1183) | 1.25 g/cm³ |
Mechanical Properties
| Tensile Strength (ISO 527) | 60 MPa |
| Tensile Modulus (ISO 527) | 3500 MPa |
| Flexural Strength (ISO 178) | 80 MPa |
| Flexural Modulus (ISO 178) | 3800 MPa |
| Impact Strength, Notched (ISO 179) | 2 kJ/m² |
Thermal Properties
| HDT A - 1.8 MPa (ISO 75) | 52 °C |
| HDT B - 0.45 MPa (ISO 75) | 54 °C |
| Glass Transition Temperature (Tg) (DSC) | 60 °C |
| Melting Temperature (Tm) (DSC) | 155 °C |
Recommended Printing Conditions
| Nozzle Temperature | 200 - 230 °C |
| Print Bed Temperature | 50 - 70 °C |
| Fan Speed | 75 - 100 % |
Other Information
| Drying recommendations | 50 °C for 4 - 6 hours |
| Reach Compliant | Yes |
| RoHS Certified | Yes |
| FDA Compliant | Yes (Only Transparent - Berliner Luft) |
Packaging
| Package Weight (Approx.) | 3 kg |
The technical data provided herein are for general information and comparison purposes only. Mechanical strength and other properties of parts printed with these materials can vary greatly depending on print settings, user experience, and environmental conditions. We do not guarantee the suitability, safety, or performance of printed parts for any specific purpose. It is the responsibility of the user to test and determine whether the printed parts meet the requirements for their intended use. We do not accept any liability for damage, injury, or loss resulting from the use of this material or from parts made with this material. Please review all available safety information and perform your own testing before using this product in any application.
