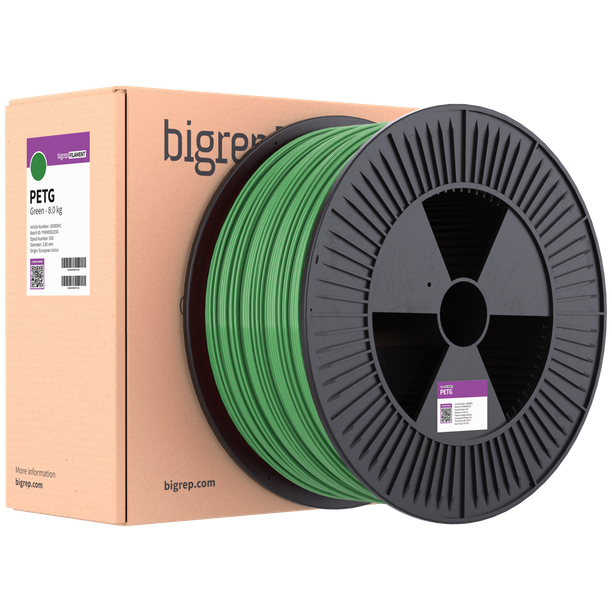

BigRep PETG
Easy to print and perfect for design iterations, BigRep PETG features well-balanced mechanical properties and chemical resistance.
Description
BigRep PETG is a great alternative to BigRep PLA with higher impact strength and heat deflection at a similarly affordable price. With minimal shrinkage, parts printed with BigRep PETG demonstrate minimal warping and reliable results. PETG is easy to print and perfect for design iterations in the prototyping phase of nearly any application. It features well-balanced mechanical properties, making PETG a suitable filament for all-around usage. BigRep PETG is chemically resistant and a great choice for applications where parts are exposed to oils, fuels, alcohols, and weak acids.
Available in several transparent colors, BigRep PETG delivers beautiful results, lending a glossy sheen to the transparent surface. This can be particularly important for certain end-use parts, when visual appearance is paramount.
Highlights
- Easy to Print for Wide Range of Uses
- High Chemical Resistance
- Good Heat Deflection Temperature
- Minimal Shrinkage for Part Accuracy
- Glossy Transparent Surface
Technical Specification
Compatibility
| Supported BigRep Printers | VIIO 250, STUDIO.2, ONE, PRO |
| Recommended SWITCHPLATES | SWITCHPLATE Select, SWITCHPLATE Classic, SWITCHPLATE Prime |
Filament Properties
| Material | Polyethylene Terephthalate, glycol-modified |
| Diameter | 2.85 mm |
| Density (ISO 1183) | 1.27 g/cm³ |
Mechanical Properties
| Tensile Strength (ISO 527) | 50 MPa |
| Tensile Modulus (ISO 527) | 1900 MPa |
| Flexural Strength (ISO 178) | 70 MPa |
| Flexural Modulus (ISO 178) | 2100 MPa |
| Impact Strength, Notched (ISO 179) | 7 kJ/m² |
Thermal Properties
| HDT A - 1.8 MPa (ISO 75) | 63 °C |
| HDT B - 0.45 MPa (ISO 75) | 70 °C |
| Vicat Softening Temperature (ISO 306) | 78 °C |
| Glass Transition Temperature (Tg) (DSC) | 85 °C |
Recommended Printing Conditions
| Nozzle Temperature | 220 - 250 °C |
| Print Bed Temperature | 70 - 90 °C |
| Fan Speed | 0 - 50 % |
Other Information
| Drying recommendations | 60 °C for 4 - 6 hours |
| Reach Compliant | Yes |
| RoHS Certified | Yes |
| FDA Compliant | Yes |
Packaging
| Package Weight (Approx.) | 9.6 kg |
The technical data provided herein are for general information and comparison purposes only. Mechanical strength and other properties of parts printed with these materials can vary greatly depending on print settings, user experience, and environmental conditions. We do not guarantee the suitability, safety, or performance of printed parts for any specific purpose. It is the responsibility of the user to test and determine whether the printed parts meet the requirements for their intended use. We do not accept any liability for damage, injury, or loss resulting from the use of this material or from parts made with this material. Please review all available safety information and perform your own testing before using this product in any application.
