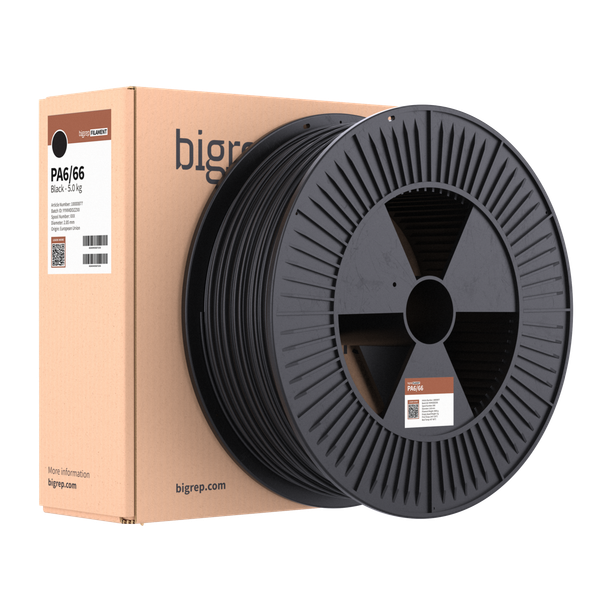

BigRep PA6/66
An excellent choice for industrial applications, BigRep PA6/66 is strong, durable, and lightweight with high resistance to heat and chemicals.
Description
BigRep's PA6/66 is a light-weight thermoplastic material with high rigidity, and a high resistance to heat and chemicals. Its high compatibility with machining and mechanical strength makes it an excellent candidate for most industrial applications, especially in the automotive and aerospace sectors.
Functionally similar to Nylon PA6, a common material for injection molding, PA6/66 is ideal for printing end-use parts or prototyping with nearly identical material properties to final, mass produced parts. The material's durability and production scalability make it the choice for not just industrial transportation applications, but also developing product electrical housing, cooling and heating systems, as well as molds and vacuum forming.
Prototyping with PA6/66 in full-scale with the same material properties as a final product can present substantial shortcuts in the product development cycle, circumventing frequent late stage iteration problems and dodging related exorbitant expenses.
Highlights
- High Heat Deflection Temperature
- Good Chemical Resistance
- High Mechanical Strength
- Low-Weight Products
- Easily Machined
Technical Specification
Compatibility
| Supported BigRep Printers | VIIO 250, STUDIO.2, PRO |
| Recommended SWITCHPLATES | SWITCHPLATE Select, SWITCHPLATE Prime |
Filament Properties
| Material | Polyamide 6/66 |
| Diameter | 2.85 mm |
| Density (ISO 1183) | 1.12 g/cm³ |
Mechanical Properties
| Tensile Strength (ISO 527) | 66 MPa |
| Tensile Modulus (ISO 527) | 2200 MPa |
| Flexural Strength (ISO 178) | 90 MPa |
| Flexural Modulus (ISO 178) | 1650 MPa |
| Impact Strength, Notched (ISO 179) | 31 kJ/m² |
Thermal Properties
| HDT A - 1.8 MPa (ISO 75) | 69 °C |
| HDT B - 0.45 MPa (ISO 75) | 110 °C |
| Glass Transition Temperature (Tg) (DSC) | 66 °C |
| Melting Temperature (Tm) (DSC) | 190 °C |
Recommended Printing Conditions
| Nozzle Temperature | 240 - 270 °C |
| Print Bed Temperature | 40 - 60 °C |
| Fan Speed | 0 - 50 % |
Other Information
| Drying recommendations | 80 °C for 6 - 8 hours |
| Reach Compliant | Yes |
| RoHS Certified | Yes |
| FDA Compliant | No |
Packaging
| Package Weight (Approx.) | 5.5 kg |
The technical data provided herein are for general information and comparison purposes only. Mechanical strength and other properties of parts printed with these materials can vary greatly depending on print settings, user experience, and environmental conditions. We do not guarantee the suitability, safety, or performance of printed parts for any specific purpose. It is the responsibility of the user to test and determine whether the printed parts meet the requirements for their intended use. We do not accept any liability for damage, injury, or loss resulting from the use of this material or from parts made with this material. Please review all available safety information and perform your own testing before using this product in any application.
