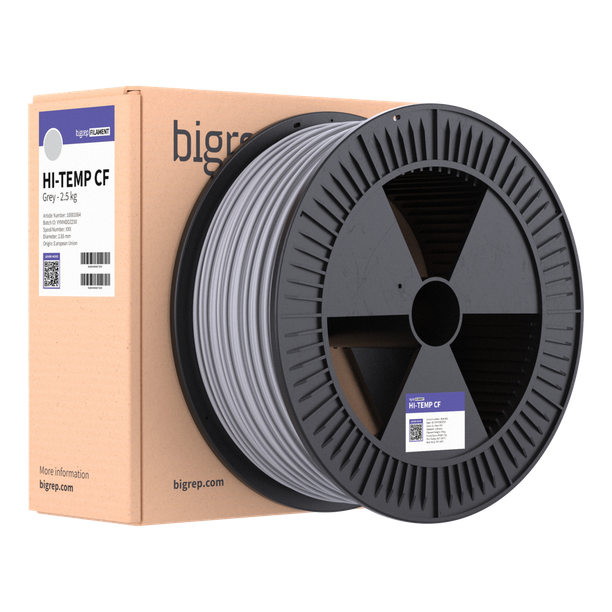

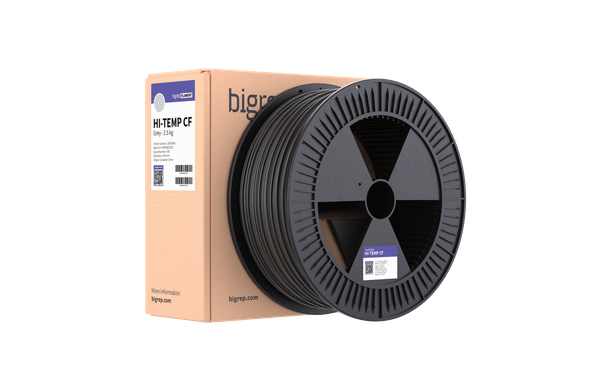

BigRep HI-TEMP CF
Thanks to its heat resistance and stiffness, HI-TEMP CF is ideal for 3D printing lightweight, functional parts like patterns, molds, and tooling.
Description
BigRep's HI-TEMP CF is a strong, engineering-grade filament with a high heat deflection temperature. Compared to BigRep HI-TEMP, HI-TEMP CF boasts even greater stiffness thanks to the addition of 10% carbon fiber.
With the combination of durability and heat resistance, BigRep HI-TEMP CF is ideal for functional applications in demanding conditions and industrial environments. Thanks to its high stiffness, HI-TEMP CF is ideal for 3D-printed patterns and molds for a range of forming applications.
A reliable and easy-to-use material, BigRep HI-TEMP CF is optimized for large-format 3D printing on BigRep machines, producing lightweight yet rigid parts. Produce functional industrial parts at an accessible price.
Highlights
- Stiff and Durable Parts
- Lightweight 3D Prints
- Good Heat Deflection Temperature
- Easy to Print for Wide Range of Uses
- Excellent Surface Finish
Technical Specification
Compatibility
| Supported BigRep Printers | VIIO 250, STUDIO.2, ONE, PRO |
| Recommended SWITCHPLATES | SWITCHPLATE Select, SWITCHPLATE Classic, SWITCHPLATE Prime |
Filament Properties
| Material | BioPolymer Blend with Carbon Fibers |
| Diameter | 2.85 mm |
| Density (ISO 1183) | 1.36 g/cm³ |
Mechanical Properties
| Tensile Strength (ISO 527) | 65 MPa |
| Tensile Modulus (ISO 527) | 7000 MPa |
| Flexural Strength (ISO 178) | 70 MPa |
| Flexural Modulus (ISO 178) | 7200 MPa |
| Impact Strength, Notched (ISO 179) | 5 kJ/m² |
Thermal Properties
| HDT A - 1.8 MPa (ISO 75) | 57 °C |
| HDT B - 0.45 MPa (ISO 75) | 74 °C |
| Vicat Softening Tempeature (ISO 306) | 165 °C |
| Melting Temperature (Tm) (DSC) | 180 °C |
Recommended Printing Conditions
| Nozzle Temperature | 210 - 240 °C |
| Print Bed Temperature | 50 - 80 °C |
| Fan Speed | 50 - 100 % |
Other Information
| Drying recommendations | 60 °C for 6 - 8 hours |
| Reach Compliant | Yes |
| RoHS Certified | Yes |
| FDA Compliant | No |
Packaging
| Package Weight (Approx.) | 3 kg |
The technical data provided herein are for general information and comparison purposes only. Mechanical strength and other properties of parts printed with these materials can vary greatly depending on print settings, user experience, and environmental conditions. We do not guarantee the suitability, safety, or performance of printed parts for any specific purpose. It is the responsibility of the user to test and determine whether the printed parts meet the requirements for their intended use. We do not accept any liability for damage, injury, or loss resulting from the use of this material or from parts made with this material. Please review all available safety information and perform your own testing before using this product in any application.
