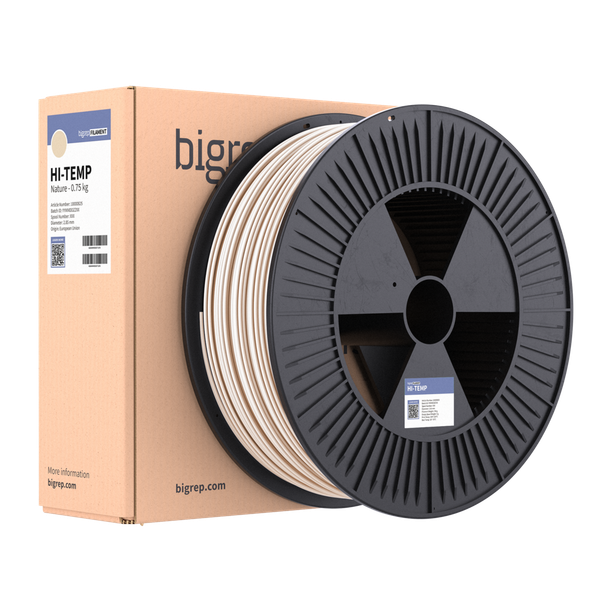

BigRep HI-TEMP
Description
Especially stiff with minimal warping, BigRep’s HI-TEMP filament produces rigid, highly accurate parts with an attractive matte surface finish. HI-TEMP is the choice for functional prototyping and end-use parts intended for indoor use, particularly low-volume production or custom tooling and manufacturing aids.
Optimized for large-format printers like the BigRep ONE, HI-TEMP also delivers great results on a wide range of third-party FFF 3D printers. HI-TEMP is a thermoplastic derived from organic compounds and is biodegradable under the correct conditions. It is CO2 neutral and environmentally friendly with a much lower ecological impact than other thermoplastics derived from fossil fuels, such as ABS. BigRep HI-TEMP filament is FDA-compliant for food safety and meets all requirements of EU Directives on food contact.
Highlights
- CO2 Neutral and Eco-Friendly
- FDA and EU Certified Food Safe
- Stiff and Rigid Parts
- Minimal Shrinkage for Part Accuracy
- Great Surface Quality and Haptics
Technical Specification
Compatibility
| Supported BigRep Printers | VIIO 250, STUDIO.2, ONE, PRO |
| Recommended SWITCHPLATES | SWITCHPLATE Classic, SWITCHPLATE Prime |
Filament properties
| Material | BioPolymer Blend |
| Diameter | 2.85 mm |
| Density (ISO 1183) | 1.35 g/cm³ |
Physical & Mechanical Properties
| Tensile Strength (ISO 527) | 50 MPa |
| Tensile Modulus (ISO 527) | 4400 MPa |
| Flexural Strength (ISO 178) | 55 MPa |
| Flexural Modulus (ISO 178) | 4300 MPa |
| Impact Strength, Notched (ISO 179) | 4 kJ/m² |
Thermal Properties
| HDT A - 1.8 MPa (ISO 75) | 54 °C |
| HDT B - 0.45 MPa (ISO 75) | 58 °C |
| Vicat Softening Tempeature (ISO 306) | 154 °C |
| Melting Temperature (Tm) (DSC) | 170 °C |
Recommended Printing Conditions
| Nozzle Temperature | 190 - 230 °C |
| Print Bed Temperature | 50 - 70 °C |
| Fan Speed | 50 - 100 % |
Other Information
| Drying recommendations | 50 °C for 4 - 6 hours |
| Reach Compliant | Yes |
| RoHS Certified | Yes |
| FDA Compliant | Yes (except Silver) |
Packaging
| Package Weight (Approx.) | 0.75 kg |
The technical data provided herein are for general information and comparison purposes only. Mechanical strength and other properties of parts printed with these materials can vary greatly depending on print settings, user experience, and environmental conditions. We do not guarantee the suitability, safety, or performance of printed parts for any specific purpose. It is the responsibility of the user to test and determine whether the printed parts meet the requirements for their intended use. We do not accept any liability for damage, injury, or loss resulting from the use of this material or from parts made with this material. Please review all available safety information and perform your own testing before using this product in any application.
