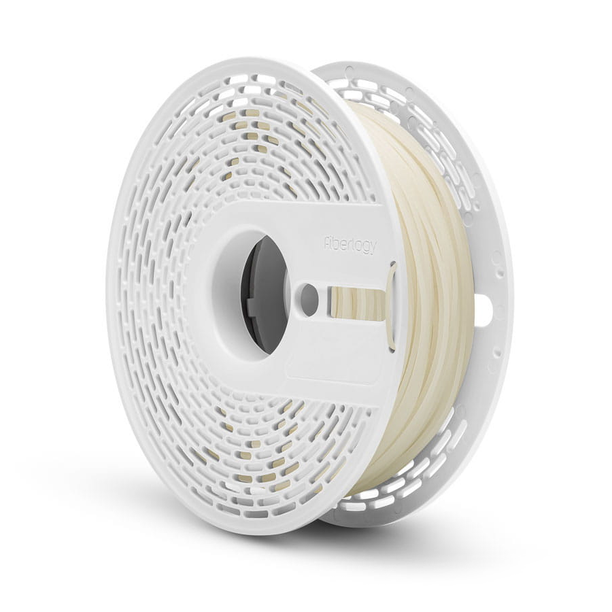

Fiberlogy Nylon PA12 GF15
With great mechanical strength and high chemical and thermal resistance, Nylon PA12 GF15 is perfect for demanding industrial and technical applications.
Prices displayed are tax exclusive. Tax will be calculated during checkout.
Description
Fiberlogy’s Nylon PA12 GF15 is an advanced engineering filament based on PA12 Nylon, reinforced with 15% glass fiber (GF). This modification significantly improves its mechanical, chemical, and thermal properties, making it an excellent material for demanding industrial and technical applications.
The glass fiber reinforcement gives the filament a stiffness of 3.6 GPa and allows it to withstand temperatures of up to 170°C. Compared to pure PA12 nylon, it offers much higher mechanical and chemical resistance, as well as greater durability of finished parts.
Unlike the carbon fiber variants, the glass fiber nylon filament provides greater flexibility. This makes prints more resistant to variable loads, impacts, and vibrations, making the filament an ideal choice for parts operating in demanding working conditions.
The filament has very low shrinkage, ensuring excellent dimensional stability. Unlike many technical nylons, PA12+GF15 does not require a heated chamber, which increases its accessibility even for home use.
Nylon PA12 GF15 is perfect for:
Automotive and machinery industries – load-bearing parts
Technical components – elements resistant to impacts and abrasion
Engineering – prototypes and final parts requiring high thermal and mechanical resistance
Note: This item may be subject to extended delivery times
Technical Specification
Compatibility
| Supported BigRep Printers | IPSO 105, ALTRA 280 |
| Recommended SWITCHPLATES | SWITCHPLATE Prime |
Filament Properties
| Material | Nylon PA12 + 15% Glass Fiber |
| Density (ISO 1183) | 1.13 g/cm³ |
| Diameter | 1.75 mm |
| Diameter Tolerance | +/- 0.02 mm |
| Roundness | +0.01 mm |
Mechanical Properties
| Tensile Strength @ Yield (ISO 527) | - |
| Tensile Strength @ Break (ISO 527) | 72 MPa |
| Tensile Modulus (ISO 527) | 3100 MPa |
| Elongation @ Yield (ISO 527) | 6 % |
| Elongation @ Break (ISO 527) | 8 % |
| Flexural Strength (ISO 178) | - |
| Flexural Modulus (ISO 178) | 3000 MPa |
| Izod Impact Strength Notched @ 23°C (ISO 180) | 16 kJ/m² |
Thermal Properties
| Heat Distortion Temperature @ 0.45 MPa (ISO 75) | 172 °C |
| Heat Distortion Temperature @ 1.8 MPa (ISO 75) | 155 °C |
| Vicat Softening Temperature (ISO 306) | 170 °C |
| Glass Transition Temperature Tg (DSC) | - |
| Melting Temperature Tm (DSC) | 178 °C |
| Continuous Use Temperature (UL 746) | 100 °C |
Recommended Printing Conditions
| Nozzle Temperature | 255 – 270 °C |
| Print Bed Temperature | 90 – 110 °C |
| Recommended Nozzle Diameter | 0.4 mm (standard) |
Other Information
| Reach Compliant | Yes |
| RoHS Compliant | Yes |
Packaging
| Package Weight (Approx.) | 1 kg |
The technical data provided herein are for general information and comparison purposes only. Mechanical strength and other properties of parts printed with these materials can vary greatly depending on print settings, user experience, and environmental conditions. We do not guarantee the suitability, safety, or performance of printed parts for any specific purpose. It is the responsibility of the user to test and determine whether the printed parts meet the requirements for their intended use. We do not accept any liability for damage, injury, or loss resulting from the use of this material or from parts made with this material. Please review all available safety information and perform your own testing before using this product in any application.
