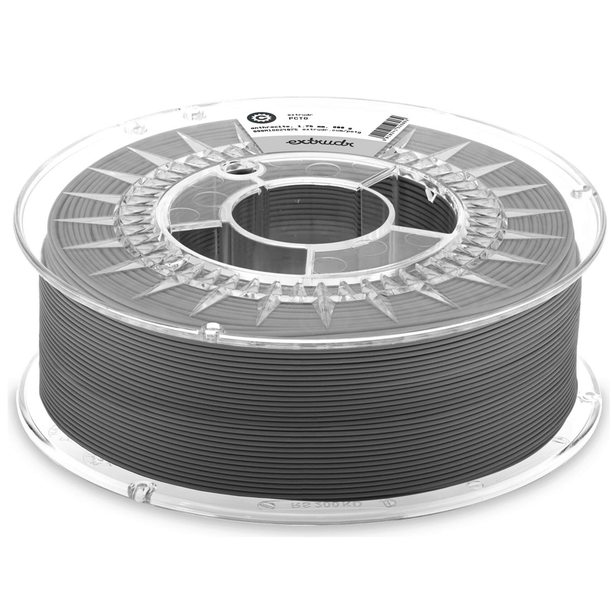

Extrudr PCTG
Strong and scratch-resistant, PCTG filament boasts high chemical and thermal resistance.
Prices displayed are tax exclusive. Tax will be calculated during checkout.
Description
PCTG from Extrudr is a scratch-resistant filament with a glassy look, which is characterized by high chemical and thermal resistance, as well as exceptionally high mechanical properties. Despite being flexible, the PCTG has good stiffness and very good impact resistance. The PCTG also has flame-retardant properties according to UL94 V2 and HB, and meets certifications such as Cosmetic, FDA, Reach and Rohs.
As a modified copolyester, PCTG is suitable for industrial applications. Its heat resistance of 80 to 90 °C makes it particularly interesting in the manufacture of electronic components and kitchen utensils. The material is easy to work with and therefore also suitable for beginners!
Tip: With sufficient heat and less cooling, the layer adhesion is excellent!
Note: This item may be subject to extended delivery times
Technical Specification
Compatibility
| Supported BigRep Printers | IPSO 105, ALTRA 280 |
| Recommended SWITCHPLATES | SWITCHPLATE Prime |
Filament Properties
| Material | PCTG (Modified Copolyester) |
| Density (ASTM D792) | 1.21 g/cm³ |
Mechanical Properties
| Flexural Modulus (ISO 178) | 1650 MPa |
| Flexural Strength (ISO 178) | 62 MPa |
| Tensile Strength at Yield (ISO 527) | 43 MPa |
| Tensile Strength at Break (ISO 527) | 45 MPa |
| Elongation at Yield (ISO 527) | 4.3 % |
| Elongation at Break (ISO 527) | 215 % |
| Notched Impact Strength (ISO 180) | 94 kJ/m² @ 23°C |
| Rockwell Hardness (ASTM D785, R-scale) | 105 |
Thermal Properties
| HDT/B (ISO 75) | 76 °C |
| Vicat Softening Temperature (ASTM D1525) | 88 °C |
| Shrinking (ASTM D955) | 0.2–0.5 % |
| Flammability (UL94 V-2, 3.2 mm) | Yes |
| Flammability (UL94 HB, 1.5 mm) | Yes |
Recommended Printing Conditions
| Nozzle Temperature | 230 – 270 °C |
| Print Bed Temperature | 90 – 110 °C |
| Adhesive | Not required |
| Print Speed | 20 – 200 mm/s |
| Cooling Fan Speed | 20 – 50 % |
| Enclosed Build Space | For larger components |
| Hardened Nozzle Required | No |
| Max Volumetric Speed | 9 mm³/s |
| Recommended Nozzle Diameter | 0.4 mm |
Other Information
| Reach Compliant | Yes |
| RoHS Certified | Yes |
| FDA Compliant | Yes |
| Cosmetics Approved | Yes |
| Toy Safe | Yes |
| Flame Retardant (UL94 V-2) | Yes |
| Shelf Life | 2 years |
| Storage Temperature | 18–27 °C |
Packaging
| Package Weight (Approx.) | 1.5 kg |
The technical data provided herein are for general information and comparison purposes only. Mechanical strength and other properties of parts printed with these materials can vary greatly depending on print settings, user experience, and environmental conditions. We do not guarantee the suitability, safety, or performance of printed parts for any specific purpose. It is the responsibility of the user to test and determine whether the printed parts meet the requirements for their intended use. We do not accept any liability for damage, injury, or loss resulting from the use of this material or from parts made with this material. Please review all available safety information and perform your own testing before using this product in any application.
