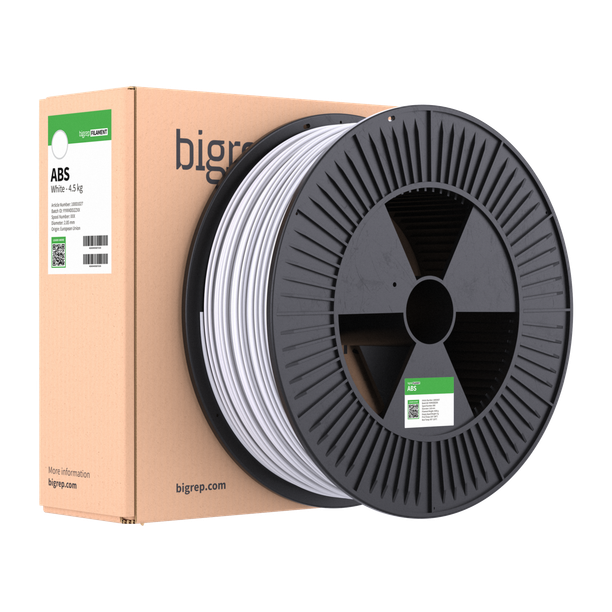

BigRep ABS
Description
BigRep's ABS material is a classic FFF filament that enables the production of a wide variety of products in large-format additive manufacturing. A familiar automotive manufacturing material now specialized for industrial AM, BigRep ABS is a high-strength filament suitable for mobility and a variety of white-goods and consumer appliances.
BigRep ABS has been optimized for large-format additive manufacturing and is able to print complex, ready-to-use parts including end-use, factory tooling and functional prototypes with demanding geometries.
Highlights
- High impact strength
- Excellent adhesion
- High heat deflection temperature
- Easy post-processing
Technical Specification
Compatibility
| Recommended SWITCHPLATES | SWITCHPLATE Classic, SWITCHPLATE Prime |
Filament Properties
| Material | Acrylonitrile Butadiene Styrene |
| Diameter | 2.85 mm |
| Density (ISO 1183) | 1.08 g/cm³ |
Mechanical Properties
| Tensile Strength (ISO 527) | 36 MPa |
| Tensile Modulus (ISO 527) | 1400 MPa |
| Flexural Strength (ISO 178) | 48 MPa |
| Flexural Modulus (ISO 178) | 1350 MPa |
| Impact Strength, Notched (ISO 179) | 40 kJ/m² |
Thermal Properties
| HDT A - 1.8 MPa (ISO 75) | 75 °C |
| HDT B - 0.45 MPa (ISO 75) | 90 °C |
| Glass Transition Temperature (Tg) (DSC) | 109 °C |
Recommended Printing Conditions
| Nozzle Temperature | 230 - 260 °C |
| Print Bed Temperature | 80 - 110 °C |
| Fan Speed | 0 - 25 % |
Other Information
| Drying recommendations | 80 °C for 4 - 6 hours |
| Reach Compliant | Yes |
| RoHS Certified | Yes |
| FDA Compliant | No |
Packaging
| Package Weight (Approx.) | 5.9 kg |
The technical data provided herein are for general information and comparison purposes only. Mechanical strength and other properties of parts printed with these materials can vary greatly depending on print settings, user experience, and environmental conditions. We do not guarantee the suitability, safety, or performance of printed parts for any specific purpose. It is the responsibility of the user to test and determine whether the printed parts meet the requirements for their intended use. We do not accept any liability for damage, injury, or loss resulting from the use of this material or from parts made with this material. Please review all available safety information and perform your own testing before using this product in any application.
